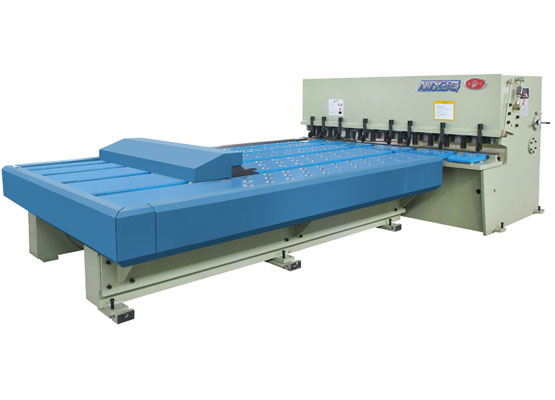

CNC front feed hydraulic shear machine
CNC front feed hydraulic shear machine

Product performance:
front feeding shearing machine with feeding tablb ,ball screw and linear way drive to provide high accuracy, the vertical clamp of sheet metal is controlled by pneumatic system to provide the clamping pressure.
closed loop control system is composed of CNC controller and the encoder. CNC controller has the automatic function of inspection and compensation. the back gauge is driven by DC servo motor, the position precision of the back gauge, the parallelism of the sheet to be cut off and the precision of the shear size can be ensured. after inputting recomputed data, the back gauge can be automatically moved. Positioned, stopped and retraction when cutting. X axis repeat positioning accuracy:¡À0.1mm.
