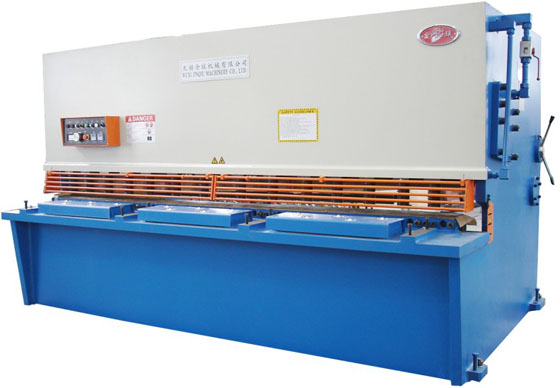

Hydraulic swing beam shear(cutting machine)
Hydraulic swing beam shear(cutting machine)

Performance:
The shearing machine used to cut the mild steel, stainless steel and copper sheet in some industries. The cutting machine is safe& reliable for operator.
The machine is used for cutting the sheet which thickness is from 0.5 to 35mm, width is 2500mm- 6000mm. The tensile strength of sheet to be cut is 450Mpa. If the machine is use for cutting the other tensile strength of material, the thickness of sheet and blade gap must be vary corresponding.
This cutting machine has a higher productivity and is an ideal sheet cutting equipment widely used in the aircraft industry, automobile, shipbuilding, electrical appliance, machinery and light industry.

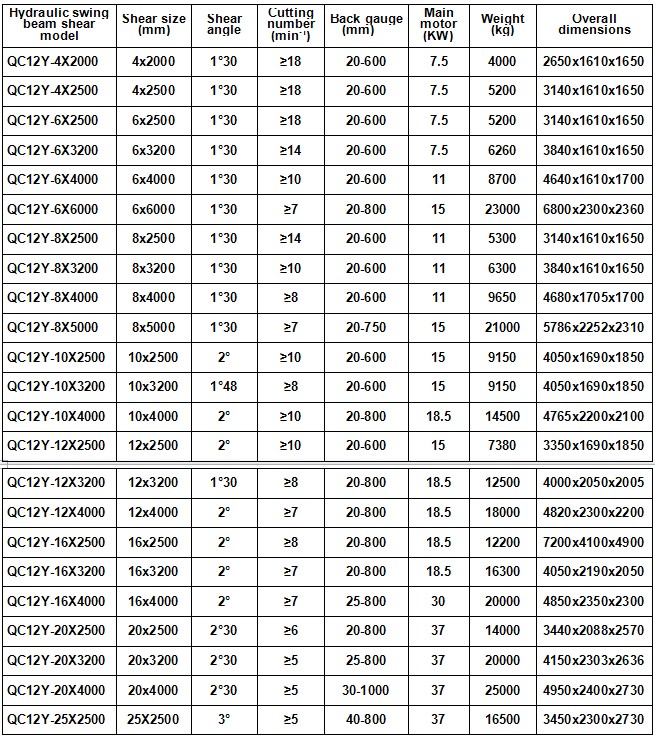

Technical parameter:
