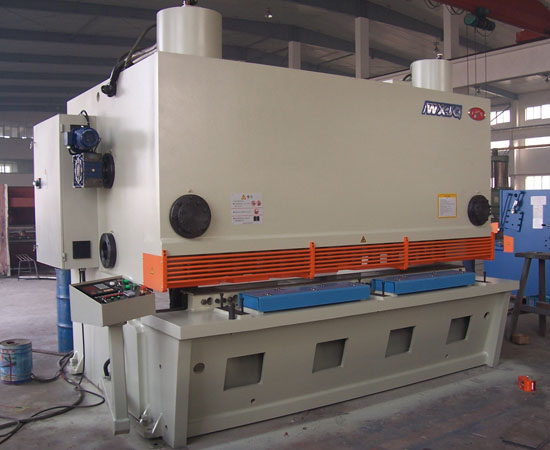

Guillotine shear
Guillotine shear

Product Description:
the guillotine shear (hydraulic metal sheet cutting machine) can cut  the metal sheet of different material and thickness
1. the frame and blade¡¯s holder are both welded construction, vibration to eliminate stress with good precision.
2. the gap between top and bottom blades could be adjusted by hand wheel easily and promptly.
3.rectangular blade has for edges to use to prolong service service life, the cutting angle could be adjusted to relif the deflection of working piece.
4.the back gauge can be controlled by E200 or DA-310 control system. Screw of back gauge adopt ball screw.
5. it is possible that gap between top and bottom blades could be automatic adjusted through control system.

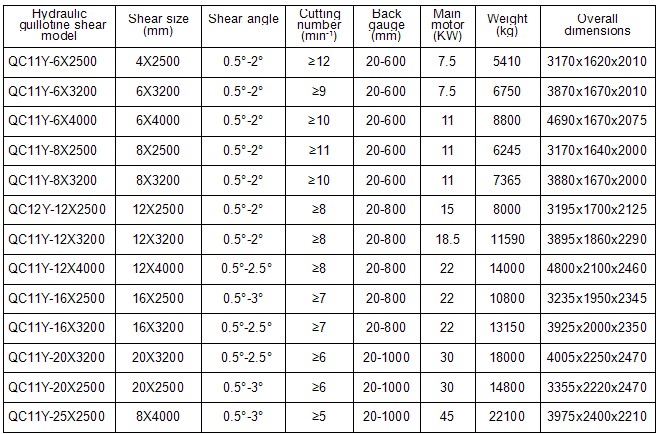

Technical parameter:
