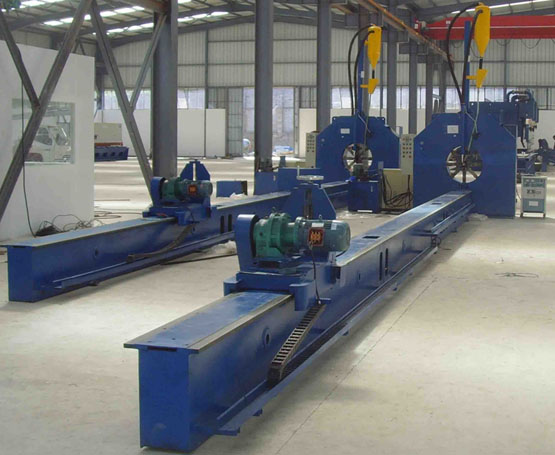

| Light pole shut- welding machine |
|
Introduction:
The light pole shut welding machine is one of production line of light pole making. The light pole seam welding machine used to weld the round poles ,polygon poles and taper poles. It can automatically weld the steel pole and obtain weld smooth. It can weld the light pole Max. length 14000mm.
the dolly with speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
The machine have Submerged Arc Welding and Gas-shielded welding(CO2) Welding both functions.
The machine includes the following items:
1.Long working table with rack for pull dolly.
2.Dolly for pulling pole
3.Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole)
4.Submerged Arc Welding and Gas-shielded welding(CO2) Welding system, including welding wire feeding system.
5.The flux recovering system
6.back support unit
7.hydraulic system

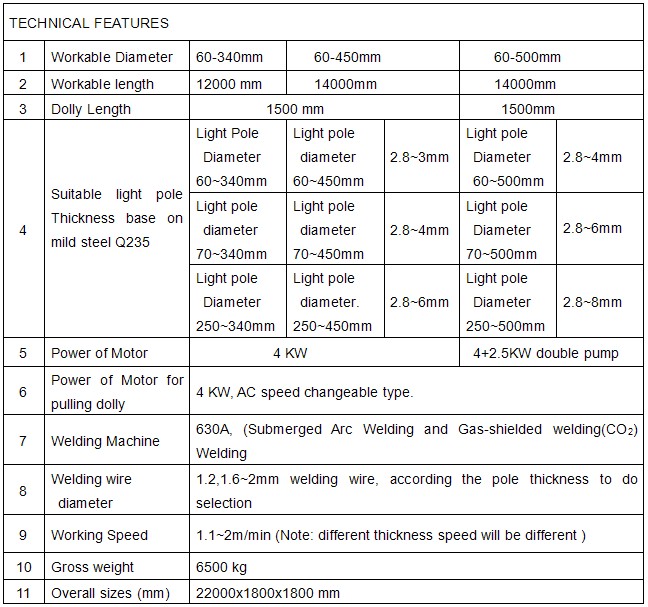

LIGHT POLE SHUT-WELDING MACHINE
MODEL: 340/12000, 450/14000, 500/14000
|
|
