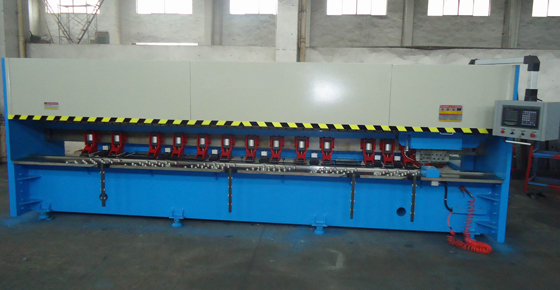

V Groove machine
V Groove machine

Performance:
V grooving machine(V cutting machine) use to make the grooves on the metal sheet, the BC05K metal sheet slotting machine¡¯s main characteristic is fast speed, high efficiency, good rigidity and small deformation.
the equipment adopts fixed beam, the work piece is feeding by the rear feeding device, the worktable can be adjusted to ensure the parallel is within ¡À0.03mm between the worktable and cross beam, solved the problem of the precision of groove depth.
the worktable is made of carbon steel. The hardness can reach HRC50 after quenching treatment, good abrasion resistance. The surface of worktable can change to prolong service life.
the V cutting machine adopts 4KW motor to do transverse movement and install six sword to cutting, the Max. depth of cutting up to 1.2mm, it is five times the traditional type machine efficiency.

          1220X4000
BC05K-  1220X5000  CNC sheet metal V grooving machine
          1220X6000

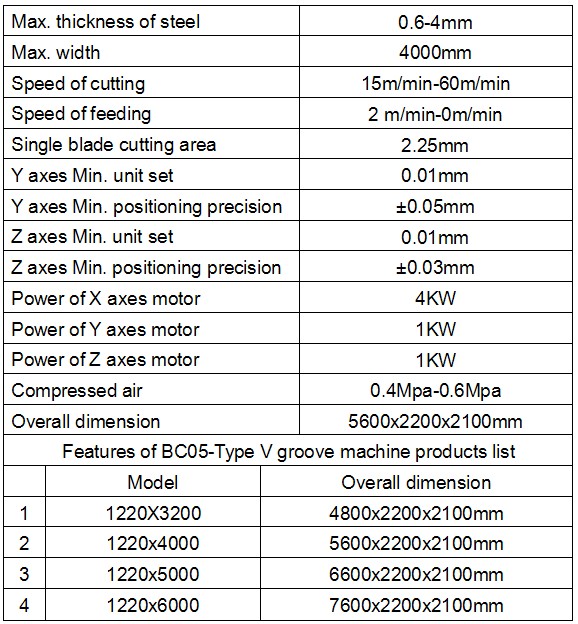

Technical date:
