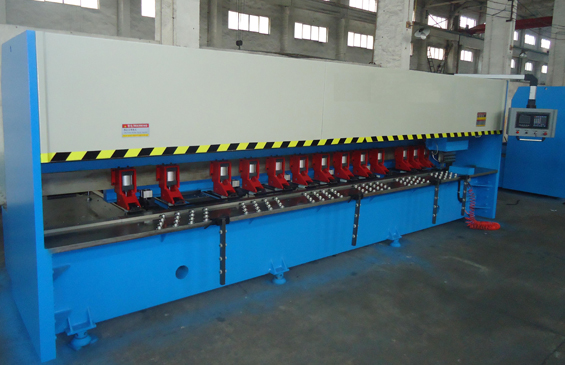

SBC V grooving machine
SBC V grooving machine

Performance:
SBC grooving machine adopt precision ball screw and linear guide way as its transmission, and has high machining accuracy, so it is particularly significant for high class-products. This structure is universally used on relevant equipment in foreign countries.
the Grooving machine is subject to three axis controlling. Its axis X( longitudinal movement of knife rack), axis Y (transversal movement of rear feeding unit) and axis Z(vertical movement of knife rack) are all subject to servo control, it can realize full automatic machining after parameter are set up to improving the accuracy of groove.
the transport ball screw is multiple-thread structure with precise machining. It is character with many force bearing point, reasonable stress distribution and reliable drive.
clamping system adopt the hydraulic system to drive, large pressure, reliable fastening force. Lowe noise and small energy consumption.
the rear feeding unit is driven by double screw structure and its surface has high positioning accuracy.
the guild way of knife rack is made of cast iron. it have abrasion resistance and have repair function to prolong the service life.
the NC program is reasonably designed and easy to learn to learn. the equipment can realize automatic machining after the parameters are input. there are multiple interlocking safeguard measure for safe operation.

          1220X4000
SBC-   1220X5000  CNC sheet metal V grooving machine
          1220X6000

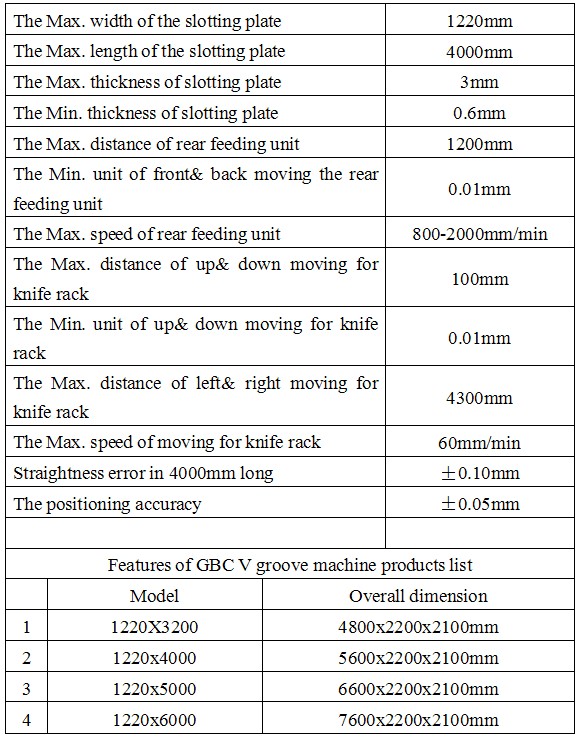

Technical date:
